| XZL系列橡胶注射机-伺服系统 | |||||
| 参数表格 Specification | |||||
| 规格 Type | XZL-1500x2000 | XZL-2000x2500 | XZL-2500x3000 | XZL-3000x4000 | XZL-40005000 |
|
注射量(cc) Injection capacity |
1500 | 2000 | 2500 | 3000 | 4000 |
| 合模力(KN) Clamping force | 2000 | 2500 | 3000 | 4000 | 5000 |
| 注射压力 (Mpa) Injection pressure | 170 | 170 | 170 | 170 | 170 |
|
螺杆直径(mm) screw DIA |
40 | 40 | 50 | 50 | 50 |
|
螺杆长径比 Screw L/D |
12.5:1 | 11.5:1 | 11.5:1 | 11.5:1 | 11.5:1 |
|
合模行程(mm) Clamping stroke |
450 | 450 | 450 | 450 | 450 |
|
热板间距(mm) Daylight |
500 | 500 | 650 | 700 | 700 |
|
热板尺寸(mm) Platen size) |
480x550 | 480x550 | 650x720 | 750x850 | 750x850 |
|
电机功率(KW) Motor power |
15 | 15 | 15 | 22 | 22 |
|
热板加热功率(KW) Heating power |
12 | 12 | 18 | 18 |
18 |

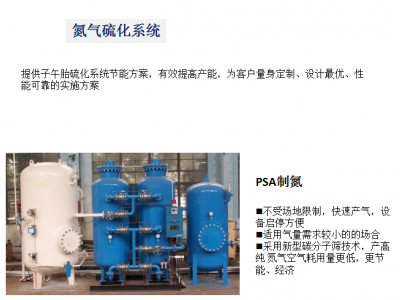

桂林中昊氮气硫化系统
